Motorcycle strip rgb led kit - set to any color!
This kit allows you to have RGB LED lights flash, fade, or stay a solid color. 6 piece LED Strip - RGB (Multiple Color) Motorycycle 12V Waterproof LED Light Strips with 3M Tape on the backside. Alaso includes 2 channel - 4key wireless remote and controller unit.
On /Off
ON Solid - with 16 colors to choose from and adjuse brightness
set to flash different colors or slow color change fade
4 key controller with two channel :
Function :
A B C D four key control the two output channel, Channel A and Channel B.
A. Select color, hold down for dimming
B. Flashing, hold down for speed
C. Fading, hold down for speed
D. On/Off, resetting
A-key ：
Short hit 1st-7th time: Red, Blue, Green, Pink Yellow, Teal, White, hold down for dimming current color.
Hit 8th time: Channel A Red light, Channel B Blue light, hold down for dimming two color
Hit 9th time: Channel A pink light, Channel B green light, hold down for dimming two color
Hit 10th time: Channel A yellow light, Channel B cyanine light, hold down for dimming two color
Hit 11th time: Channel A white light, Channel B red light, hold down for dimming two color
Hit 12th time: Channel A green light, Channel B white light, hold down for dimming two color
Hit 13th time: Channel A blue light, Channel B green light, hold down for dimming two color
Hit 14th time: Channel A cyanine light, Channel B pink light, hold down for dimming two color
Hit 15th time: Two channel 7 color jumping, hold down for speeding up or down
Hit 16th time: Two channel 7color fading, hold down for speeding up or down
B- key ：
Short hit 1st time: Only channel A flashing under the current color, hold down for speeding up or down
Short hit 2nd time: Only channel B flashing under the current color, hold down for speeding up or down
Short hit 3rd time: Channel A&B flashing under the current color, hold down for speeding up or down
Short hit 4th time: Channel A&B chasing under the current color, hold down for speeding up or down
Short hit 5th time: Channel A&B flashing by turns under the current color, hold down for speeding up or down
Short hit 6th time: Channel A lighting 3 second, afterward, both channel lighting for 3 second, Channel A goes out, 3 seconds later, channel B goes out.
Short hit 7th time: Channel A flashing under current color, channel B static, hold down for speed up&down
Short hit 8th time: Channel A static under current color, Channel B flashing, hold down for speed up&down
Short hit 9th time: Channel A 7color jumping, Channel B fading
Short hit 10th time: Channel A fading, Channel B 7 color jumping.
C-Key:
Short hit 1st time: Only channel A fading under the current color, hold down for speeding up or down
Short hit 2nd time: Only channel B fading under the current color, hold down for speeding up or down
Short hit 3rd time: Channel A&B fading under the current color, hold down for speeding up or down
Short hit 4th time: Channel A&B fading by turns under the current color, hold down for speeding up or down
Short hit 5th time: Channel A flashing under the current color, Channel B fading under the current color, hold down for speeding up or down
Short hit 6th time: Channel A fading under the current color, Channel B flashing under the current color, hold down for speeding up or down
Short hit 7th time: Channel A static under current color, channel B fading, hold down for speed up&down
Short hit 8th time: Channel A fading under current color, Channel B static, hold down for speed up&down
D- key ：
Turn on/off all the loading, Hold down for resetting the controller, the pattern recover back to the first pattern-red static.
Connection：
Red wire: DC12V +
Black wire: DC12
White wire: Antenna
Red wire：Red -
Green wire: Green -
Blue wire : Blue

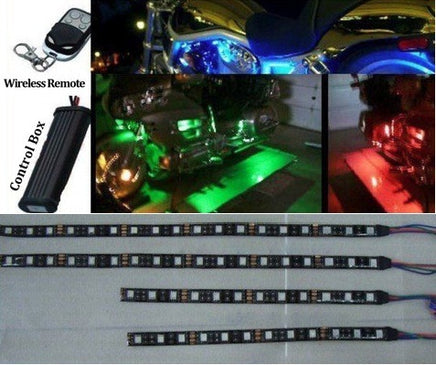

This set consists of
Wireless Key Fob Remote
Controller Box
Two pcs 10cm strips with 3 LED lights each set
Two pcs 20cm strips with 6 LED lights each set
Two pcs 30cm strips with 9 LED lights each set
